I Drew It. They Built It. It Fit.

Nobody asked me to draw it.

We were buying a thermostat mounting bracket from a third-party supplier. Standard part, nothing complicated. But the lead time was long, the price added up across quantity, and I could picture exactly what the part needed to do.

So I grabbed a sheet of paper.

I took the measurements, worked out the hole placements, sketched the two views, and filled in a title block — part name, date, my name. The whole thing took less than an hour.

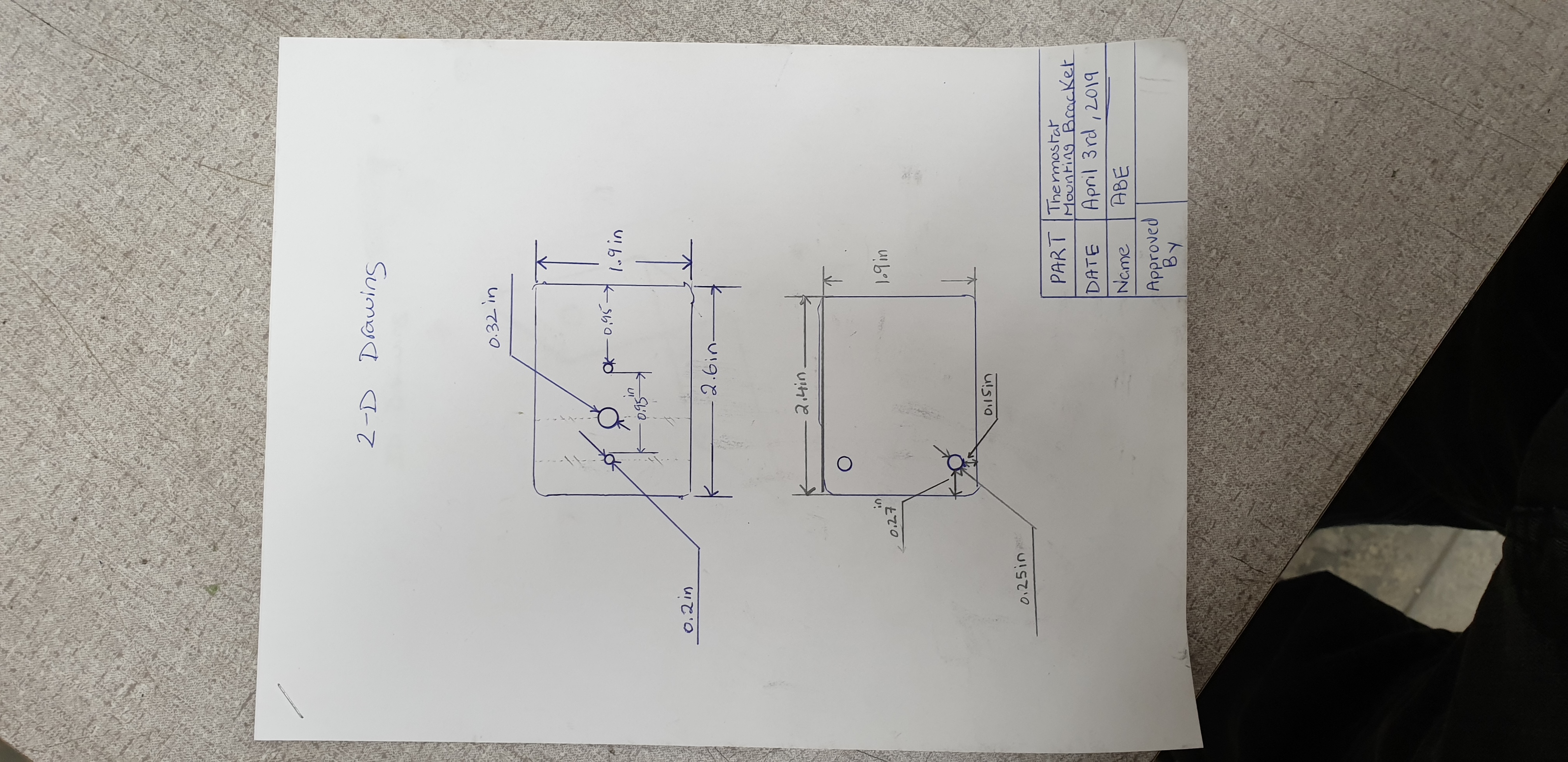

Figure 1: Hand-drawn 2D technical drawing — Thermostat Mounting Bracket, April 2019

I handed it to my supervisor. He looked it over, made a couple of notes, and signed off. We sent it to the manufacturing team and our welders.

A week later, I had 100 of them.

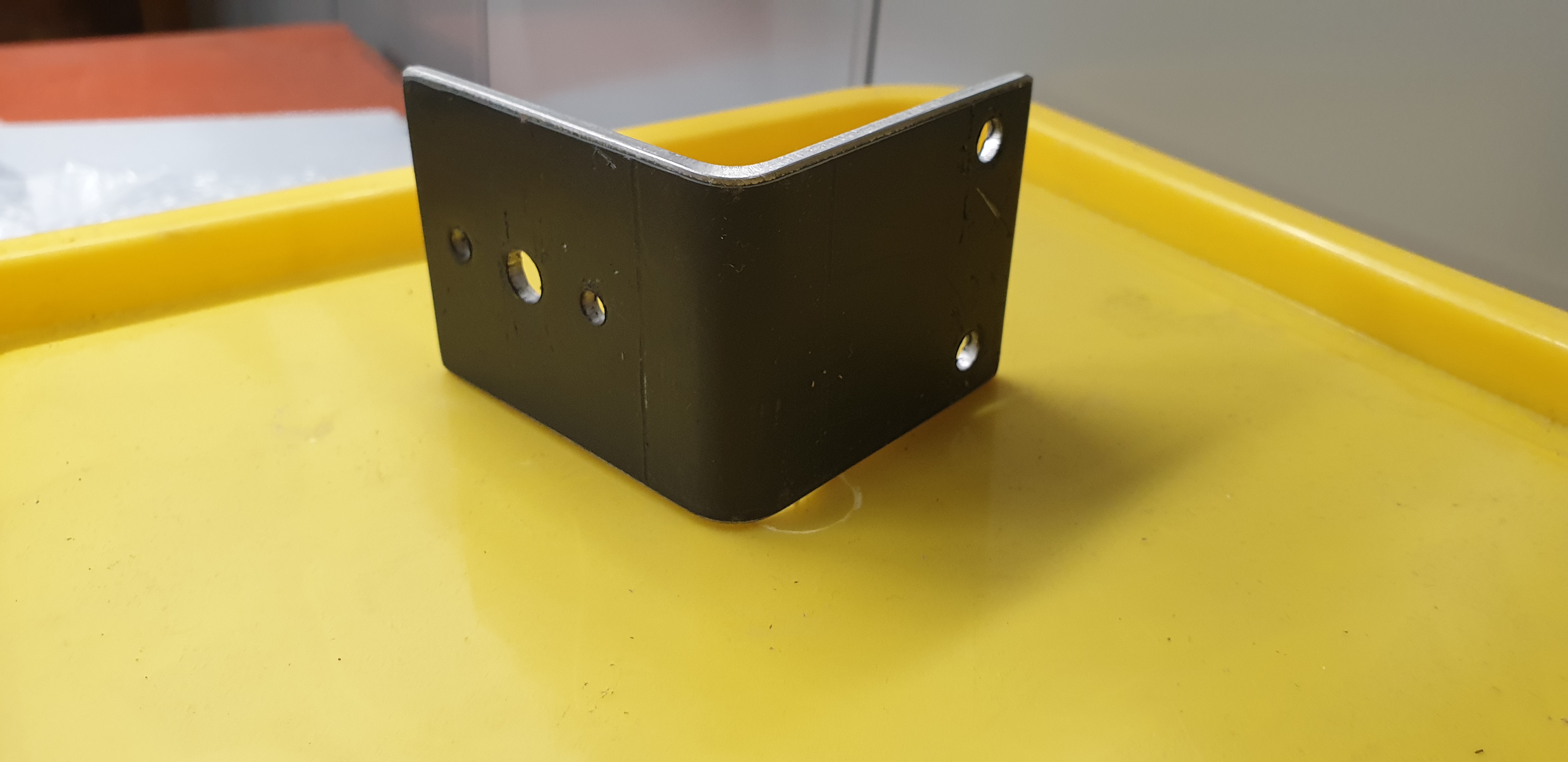

Figure 2: The finished bracket — powder coated, holes drilled exactly where the drawing said

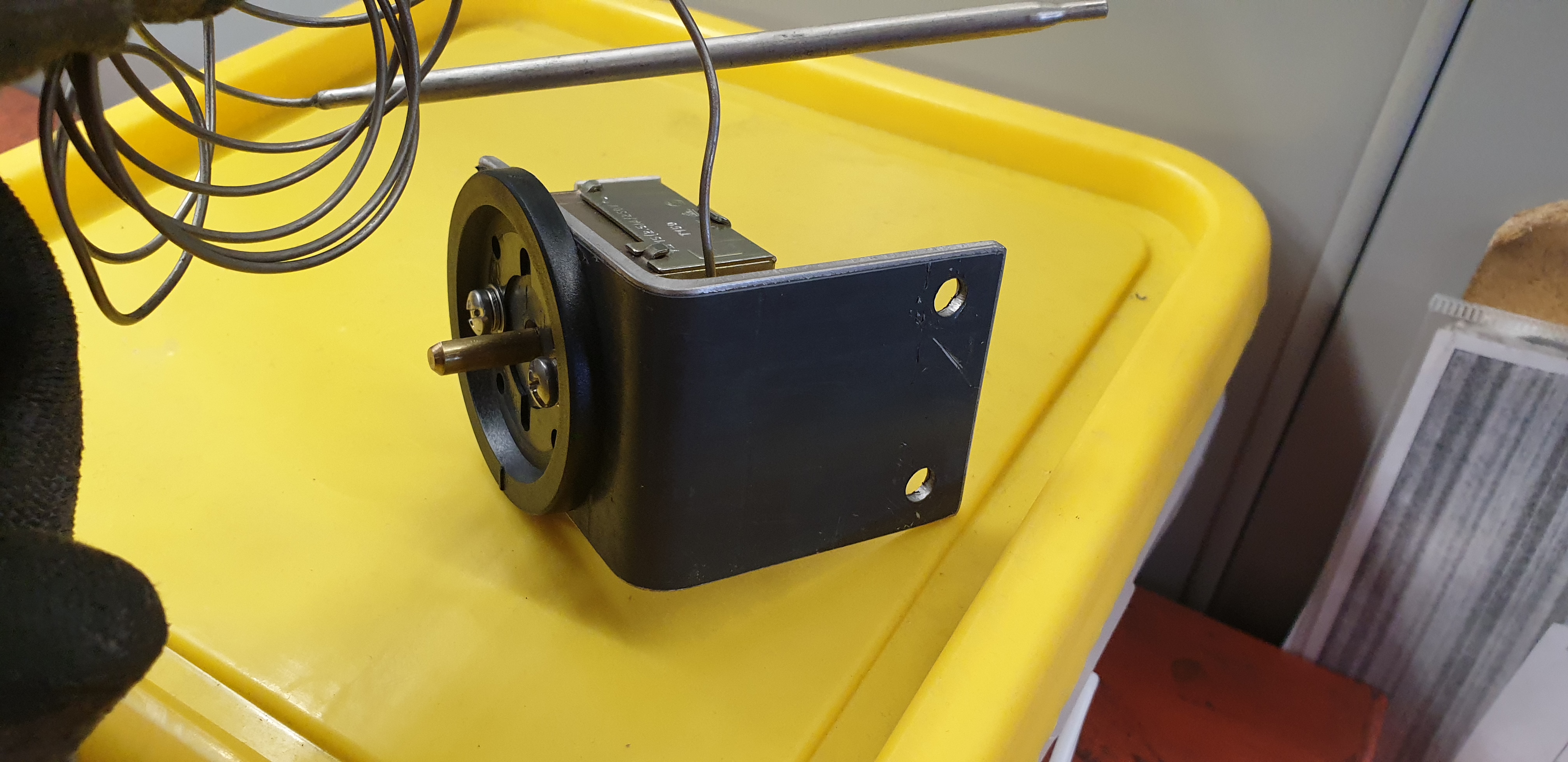

Figure 3: Bracket mounted with the thermostat — fit like a glove

Every single one fit.

That is the thing about understanding engineering across multiple disciplines. You do not always need the expensive tool. You do not always need the specialist. Sometimes you just need to understand the problem clearly enough to put it on paper — accurately, completely, in a language the person building it can read.

A 2D drawing is not a document. It is a conversation between the person who sees the problem and the person who can solve it with their hands.

That conversation went well.
